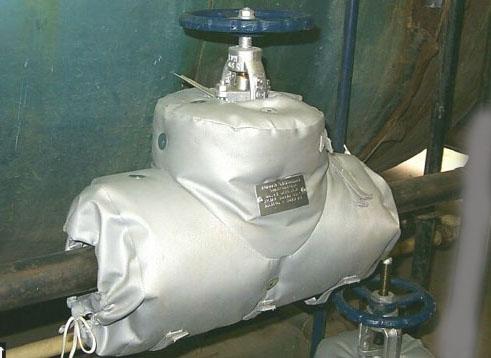

Removable insulation jacket, something also like thermal insulation blanket, cover, mattress, pad are used for high temperature insulation with conveniently removable, fireproof, high temperature resistance, safe.
Hot alternating
The valve or flange in the thermal pipes is not well insulated. it may cause leakage due to uneven expansion and contraction during overtimes opening and closing. In the winter the alpine region, once the uninsulated valve is closed, the valve freezes much faster than the valve with good insulation If the interval between closing and opening is shorter, the valve with good insulation is always hot. In the case of closing and opening, the poorly insulated or uninsulated valve may be closed at a high temperature and opened at a low temperature. The high temperature heat exchange causes the valve parts that are in contact with or close to the medium to be subjected to alternating stress, which aggravates the fatigue aging of the valve parts and shortens the service life ratio of the valve. At the same time, the valve lose its sealing effect.

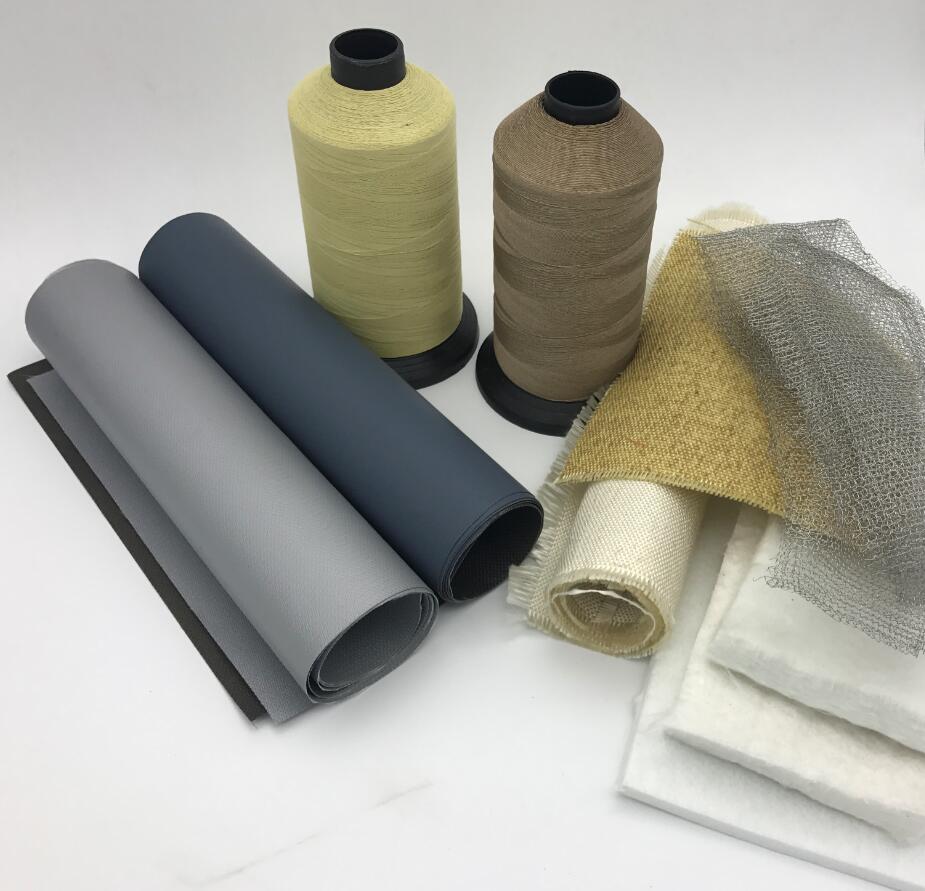

What recommended materials EAS offer to the insulation jacket? Valves, flanges, pumps, exhaust, turbine, vessels etc
thermal insulation blanket.jpg
Temperature range: 0-260℃
Inner side: Silicone coated fiberglass cloth or Teflon coated fiberglass cloth
Outer side: Silicone coated fiberglass cloth or Teflon coated fiberglass cloth
Thread: Teflon coated fiberglass sewing thread
Insulation: E glass needle mat or mineral wool, aerogel blanket
Temperature range: 0-260℃
Inner side: Silicone coated fiberglass cloth or Teflon coated fiberglass cloth
Outer side: Silicone coated fiberglass cloth or Teflon coated fiberglass cloth
Thread: Teflon coated fiberglass sewing thread
Insulation: E glass needle mat or mineral wool, aerogel blanket
Temperature range: 400-700℃
Inner side: Vermiculite coated glass cloth, Middle temperature silica fabric
Outer side: Silicone coated fiberglass cloth or Teflon coated fiberglass cloth
Thread: Kevlar sewing thread with S.S
Insulation: Silica needle mat, ceramic blanket, aerogel blanket
Temperature range: 700-1100℃
Inner side: Silica fabric (+wire mesh advised)
Outer side: Silicone coated fiberglass cloth or Teflon coated fiberglass cloth, fiberglass wire cloth with silicone coated, silicone coated silica cloth
Thread: Kevlar sewing thread with S.S or S.S thread
Insulation: Silica needle mat, ceramic blanket, aerogel blanket
If need to meet UL1709, pls contact EAS sales.
The above is advised basic structure of the removable insulation jacket construction for general purpose. For special condition like indoor&outdoor, energy saving, noise insulation, vibration, anti-freeze, Pls contact our technical sales.
