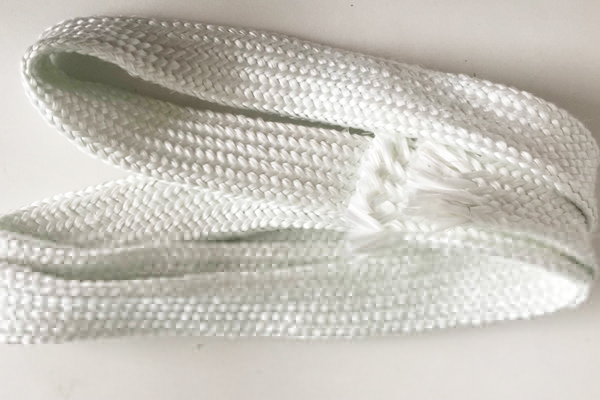

Fiberglass sleeve is braided high quality E glass fiber yarn, a flat and low fuzz fire sleeve. It is light duty insulation protection sleeve and can be further processed with acrylic, silicone rubber and aluminum foil.
Features
100% E glass fiber, imcombustible
High strength and durability
Smooth and low fuzz
High temperature resistance rating up to 550℃
Compatible with eopxy
Application
Cable; Hose; Resin reinforcement;

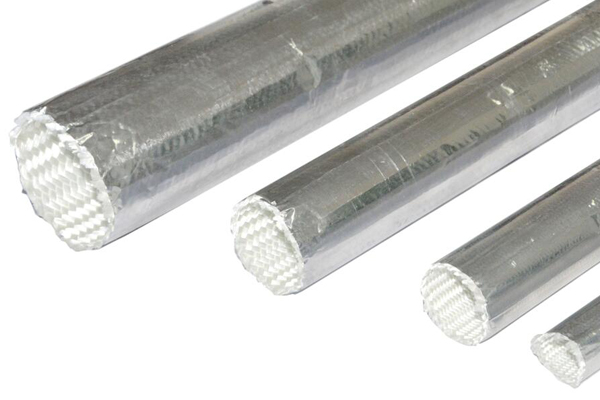

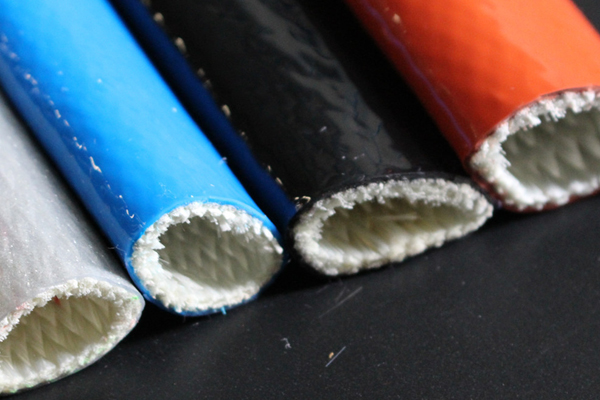

Further process to:
| Item | Inner diameter, mm | Wall thickness, mm | Yield per kg, m |
| AS-6 | 6.0 | 1.5 | 20 |
| AS-8 | 8.0 | 1.6 | 12.5 |
| AS-10 | 10.5 | 1.8 | 9.5 |
| AS-12 | 13.5 | 1.9 | 6.7 |
| AS-15 | 15.5 | 2.1 | 5.7 |
| AS-20 | 20 | 2.4 | 3.8 |
| AS-22 | 22 | 2.5 | 3.3 |
| AS-25 | 25 | 2.6 | 2.9 |
| AS-28 | 28 | 2.7 | 2.6 |
| AS-30 | 30 | 2.9 | 2.3 |
| AS-35 | 35 | 3.1 | 1.9 |
| AS-38 | 38 | 3.2 | 1.8 |
| AS-40 | 40 | 3.4 | 1.7 |
| AS-45 | 45 | 3.4 | 1.4 |
| AS-50 | 51 | 3.6 | 1.2 |
| AS-55 | 56 | 3.7 | 1.1 |
| AS-60 | 61 | 3.8 | 0.96 |
| AS-65 | 66 | 3.8 | 0.90 |
| AS-70 | 71 | 4.0 | 0.80 |
| AS-75 | 76 | 4.1 | 0.73 |
| AS-80 | 81 | 4.3 | 0.66 |
| AS-85 | 86 | 4.3 | 0.60 |
| AS-90 | 91 | 4.5 | 0.54 |
| AS-100 | 101 | 4.6 | 0.50 |
| AS-110 | 111 | 4.7 | 0.44 |
| AS-150 | 151 | 5.2 | 0.38 |
Approx 20meters or 10meters per roll
Packing:
One roll per carton
 |
 |
 |
|
Fiber forming |
Textile woven, knitting, braiding |
Fabric coating |
