Silicone Fiberglass For Fabric Expansion Joint

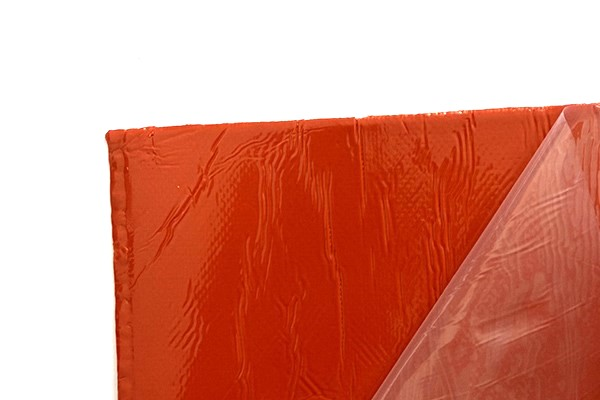

Silicone coated fiberglass fabric for expansion joint is made by heavy silicone with one side or both side calendered on fiberglass fabric. The glass fabric with heavy silicone coated is excllent high strength and durability. Sometime stainless steel wire reinforced. It is an ideal material for flexible, high temperature sealing condition.
EAS can produce all the silicone coated glass fibre fabric based on EAS's glass fibre fabric.
Features
High tensile and tear strength
High burst strength and excellent pressure resistance
Great oil, chemical, weathering,waterproof resistance, gas sealing
High temperature resistance rating up to 260℃
Application
Fabric expansion joint; Compensator; Flexible connector
Thickness: 1.2mm, 1.3mm, 1.5mm, 2.0mm, 3.0mm, 5.0mm
Width: 1000mm,1200mm, 1500mm
There are also avilable with EPDM and Viton rubber coated fiberglass fabric
| Item | Total Thickness mm |
Coating weight, g/m2 | Coating side | Total weight g/m2 |
Weave |
| SC200 | 0.22 | 50 | 1 | 250 | Plain |
| 0.22 | 120 | 2 | 320 | Plain | |
| SC400 (ECO) | 0.40 | 60 | 1 | 480 | 4H Satin |
| 0.40 | 80 | 1 | 500 | 4H Satin | |
| 0.40 | 100 | 1 | 520 | 4H Satin | |
| 0.40 | 130 | 1/2 | 550 | 4H Satin | |
| 0.40 | 160 | 2 | 580 | 4H Satin | |
| 0.40 | 200 | 1/2 | 620 | 4H Satin | |
| SC600 (ECO) | 0.80 | 120 | 1 | 760 | 8H Satin |
| 0.80 | 260 | 2 | 900 | 8H Satin | |
| 0.80 | 300 | 2 | 940 | 8H Satin | |
| 0.80 | 400 | 2 | 1040 | 8H Satin | |
| SC600R | 0.80 | 130/260 | 1/2 | 840/970 | 8H Satin |
| SC800 (ECO) | 1.0 | 200 | 2 | 1080 | 8H Satin |
| 1.0 | 260 | 2 | 1120 | 8H Satin | |
| 1.1 | 1000 | 1 | 1840 | 8H Satin | |
| SC1000(R) | 1.3 | 750 | 1 | 1850 | Plain |
| 1.5 | 1550 | 2 | 2550 | Plain | |
| SA30 | 1.3 | 1000 | 1/2 | 2000 | Plain |
| SA2025 | 1.0 | 400 | 1 | 1000 | Plain |
| ST600 | 0.70 | 100 | 1 | 700 | 8H Satin |
| 0.70 | 200 | 2 | 800 | 8H Satin | |
| ST1200 | 1.30 | 300 | 2 | 1500 | 12H Satin |
Packaging Details:
Roll length: 30 or 50meters
Standard width: 1m, 1.2m
By polybag and pallet
 |
 |
 |
|
Fiber forming |
Textile woven, knitting, braiding |
Fabric coating |
Why cloose us:
-
Top priority:
Complete and matured quality control and assurance experience. ISO9001-2008 certification. Our Promise:
NEVER REDUCE QUALTY FOR PROFIT
NEVER REDUCE QUALTY FOR HIGHER COST
100% RESPONSIBLE FOR OUR QUALITY -
Price and term:
Low price level for products range raw yarn to finished products. -
Feedback:
Shortest time reaction to inquiry, production state, delivery state, custom clearance supports and complaints. -
Support:
Project involved, new products development and investment.
FAQ:
-
What is products of EAS?EAS produces single fiberglass yarn, high temperature sewing threads, fiberglass woven fabrics, coating fabrics and fabrics finish. If necessary, EAS will buy other yarns for specific textiles request.
-
EAS provide all the products in the website?This website is one of EAS’s promotional channels. For special textiles or short production capacity, EAS will provide raw materials (Like fiberglass yarns and fabrics) and look for reliable OEM service in the condition of quality assurance.
